Industrial CNC Routers
Built for Shops
That Ship Product
Every Front Range CNC machine is welded steel, servo-driven, and laser-calibrated in Colorado Springs. Everything included — no add-on games.

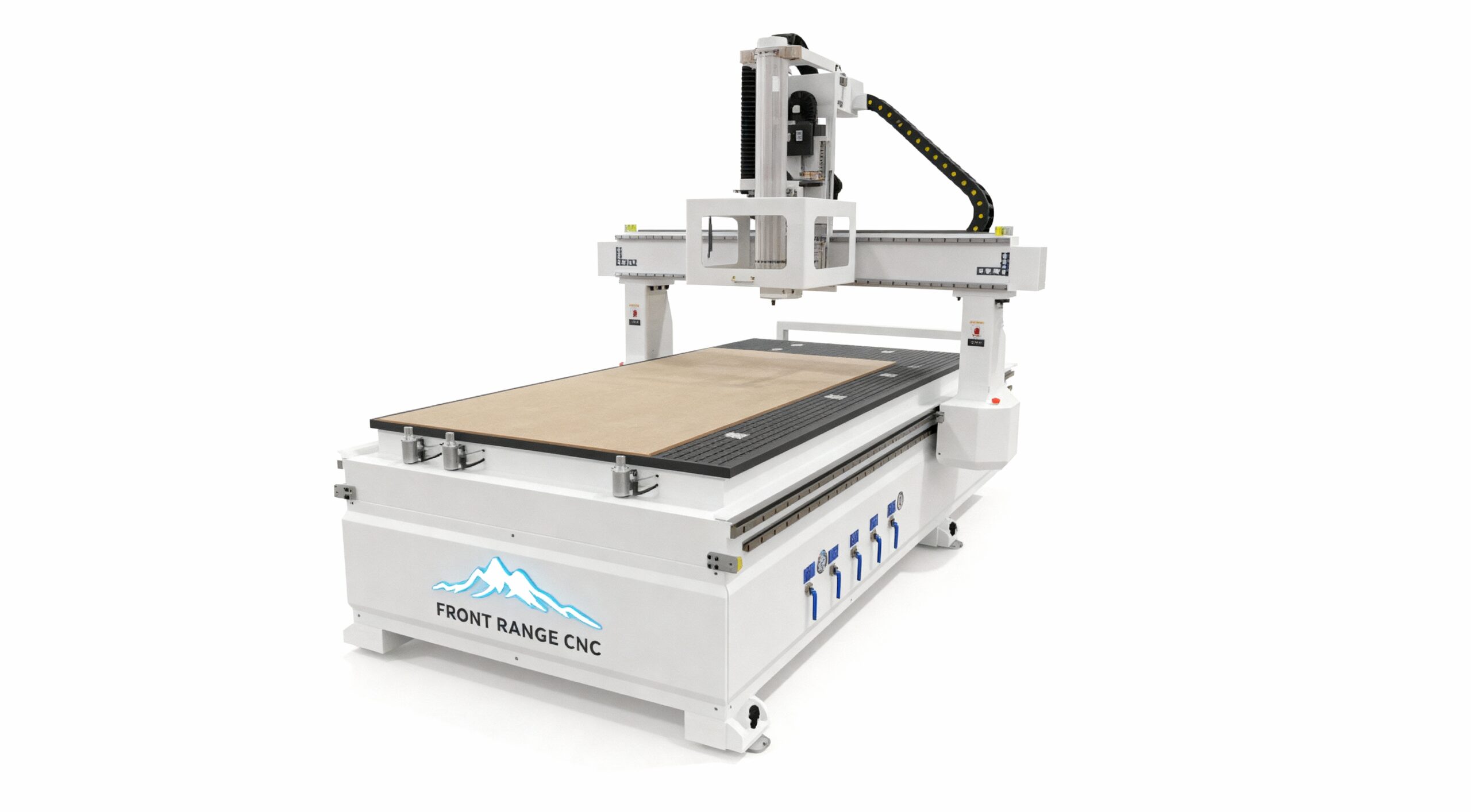

Foundation
10HP ISO30 spindle with 12-position ATC, drill bank, 10HP vacuum, dust collector, software, and onsite installation — everything you need to start cutting. No add-on games.
- Sizes4×8 • 5×10
- Spindle10HP ISO30 — 24,000 RPM
- Tool Changer12-Position ATC — 15-Second Changes
- Drill Bank5 Vertical + 4 Horizontal
- Rapids2,500 IPM
- Starting At$60,000
12-Position ATC + Drill Bank
12 ISO30 tool positions with 15-second changes plus 5 vertical and 4 horizontal drill spindles — all included.
10HP Rotary Vane Vacuum
Industrial rotary vane vacuum pump included for reliable hold-down on sheet goods and nested parts.
2-Day Onsite Installation
Professional onsite setup and training included. We install it, calibrate it, and train your team.
When You Need More
Step Up to the Elite
Elite Series
16HP HSK spindle, 12-position ATC, drill bank, vacuum, dust collector, software, and 3-day onsite installation. Built to push 50+ sheets per day on multi-shift production.
- Sizes4×8 • 5×10 • 5×12 • 7×10
- Spindle16HP HSK — 24,000 RPM
- Tool Changer12-Position ATC
- Drill Bank5 Vertical + 4 Horizontal
- Production~50+ Sheets/Day — ~7 Min/Sheet
- Starting At$81,000
16HP HSK Spindle
Industrial 16HP spindle with HSK tool holders for unmatched rigidity and precision at 24,000 RPM.
50+ Sheets Per Day
~7 minutes per sheet, ~45 seconds between jobs. Built for high-volume production and multi-shift operation.
3-Day Onsite Installation
Professional installation, calibration, and hands-on training included. Your team is production-ready when we leave.
Side by Side
Foundation vs. Elite
| Foundation | Elite | |
|---|---|---|
| Sizes | 4×8, 5×10 | 4×8, 5×10, 5×12, 7×10 |
| Spindle | 10HP ISO30, 24K RPM | 16HP HSK, 24K RPM |
| Tool Changer | 12-Position, 15-Sec Changes | 12-Position ATC |
| Drill Bank | 5 Vertical + 4 Horizontal | 5 Vertical + 4 Horizontal |
| Vacuum | 10HP Rotary Vane | 10HP Rotary Vane |
| Dust Collector | 7.5HP Included | 7.5HP Included |
| Linear Guides | 25–30mm HiWin Rails | HiWin Rails |
| Controls | Syntec | Syntec |
| Rapid Speed | 2,500 IPM | 2,500 IPM |
| Software | VCarve Pro + Mozaik | VCarve Pro + Mozaik |
| Installation | 2-Day Onsite | 3-Day Onsite |
| Warranty | 3-Year Parts + Lifetime Support | 3-Year Parts + Lifetime Support |
| Starting At | $60,000 | $81,000 |
Standard on Every Machine
Everything Included
Welded Steel Frame
Precision-milled one-piece steel frame finished on an aerospace mill. No bolt-together frames, no flex.
Drill Bank + ATC
5 vertical and 4 horizontal drill spindles plus 12-position automatic tool changer — standard on every machine.
Vacuum + Dust Collection
10HP rotary vane vacuum pump and 7.5HP dust collector included. No add-ons required.
VCarve Pro & Mozaik
Both CAM software licenses included. Start cutting on day one — no extra software purchases needed.
3-Year Warranty + Lifetime Support
3-year parts warranty plus lifetime phone and remote technical support from our Colorado team.
Onsite Installation & Training
Professional onsite setup, calibration, and hands-on training included with every machine.
Not Sure Which Machine?
We Can Help
Tell us what you’re cutting, your volume, and your budget. Our team will recommend the right machine and configuration for your shop.
