Introducing
The Elite
The machine that never says no.
Everything included. Maximum production.
The Truth
You're not looking for a machine.
You're looking for capacity.
The jobs are there. The orders are stacking up. But your current machine — or your lack of one — keeps you from saying yes. You're turning away work, or you're killing yourself to keep up, or you're watching competitors take what should be yours.
The Elite exists for shops that are done waiting. Done compromising. Done wondering if they could handle more if they just had the right equipment.
This is the machine that processes 50+ sheets a day without breaking a sweat. The one that pays for itself in a year and then keeps paying you back for the next decade.
Production Speed
Seven seconds changes everything.
When your tool changer moves twice as fast, your whole shop moves faster. The Elite's rotary carousel doesn't just save seconds — it compounds into hours, then days, then dollars.
That's 12,000+ sheets a year. What would you do with that capacity?
The Difference You Can Feel
Up to 9,800 lbs of no compromise.
While others engineer weight out to cut costs, we engineered it in to cut cleaner. More mass means less flex, tighter tolerances, and faster feeds — because the machine isn't fighting itself.
Pounds matter. Every one of them.
Who Builds Your Machine
We didn't start here.
Before Front Range, we built the machines that cabinet shops dream about — the $200K, $500K, half-million-dollar production centers that run three shifts and can't afford an hour of downtime. We've tuned servos, calibrated spindles, and troubleshot motion systems on machines most shops will never touch.
We know what lasts ten years. We know the difference between a spec sheet and a machine that actually holds tolerance under load.
That's the knowledge built into every Elite.
Every machine is finished, calibrated, and tested in our facility before it ships. Electronics, motion control, quality control — done here, by us, with our hands on it.
What's Included
Everything. That's the point.
No options list. No "call for pricing" on the parts that matter. The price you see is the machine you get — complete, production-ready, on your floor.

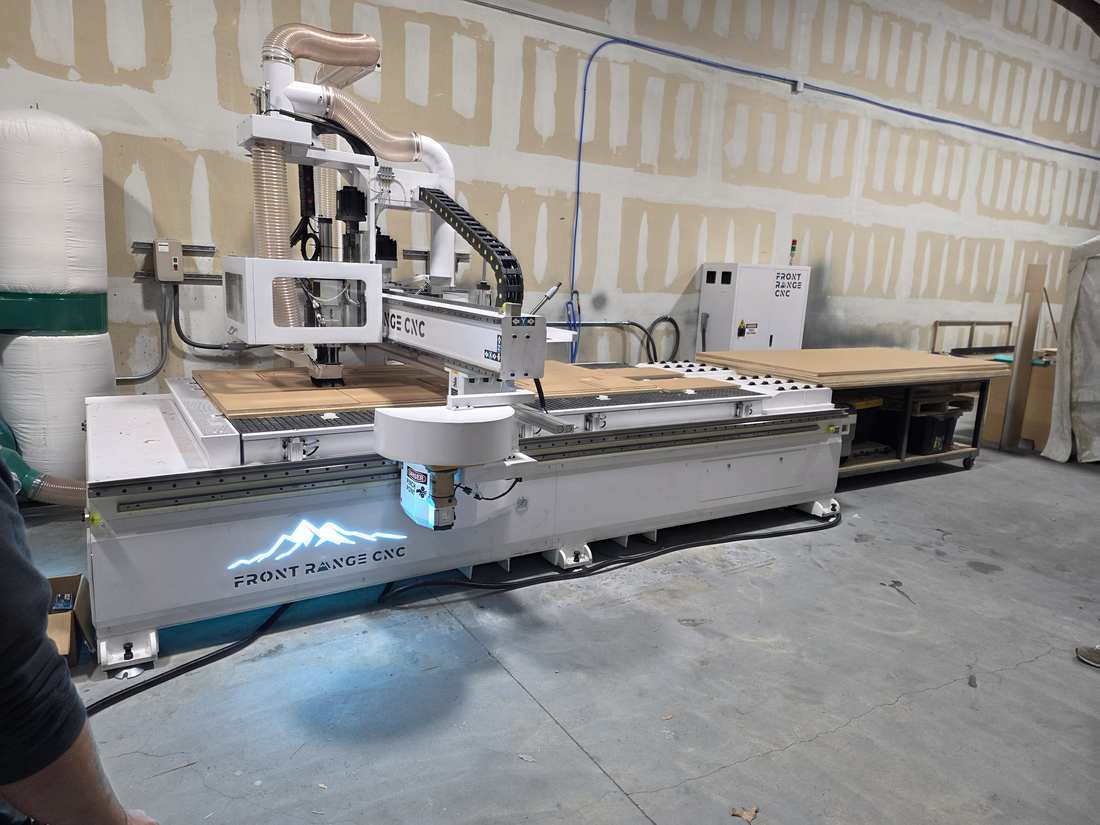

16HP HSK Spindle
Maximum power meets maximum rigidity. The HSK interface doesn't just hold tools — it holds tolerances that lesser spindles can't touch.
7-Second Rotary Tool Changer
Twelve positions. Seven seconds. The carousel that turns downtime into throughput.
5+4 Drill Bank
Five vertical, four horizontal. Shelf pins, construction holes, dowels — one setup, done.
10HP Rotary Vane Vacuum
Industrial hold-down that actually holds. No slipping. No re-clamping. No excuses.
7.5HP Dust Collector
Industrial dust collection, ready on day one. Because breathing matters.
VCarve Pro & Mozaik
Design-to-production software with post processors that actually work. Tested by us, not figured out by you.
12 HSK Toolholders + Bits
Ready to load. Profiling, pocketing, drilling, finishing — start cutting, not shopping.
3-Day Onsite Installation
We come to you. Setup, calibration, hands-on training. You'll be cutting production jobs before we leave.
Plus automatic lubrication, 3-year parts warranty, and lifetime phone support.
Performance
Built to Run. All Day. Every Day.
These aren't theoretical maximums. This is how the machine actually runs — in real shops, on real jobs, with real expectations.
See It Run
Spec sheets don't cut plywood.
Investment
Four Sizes. One Philosophy.
Same components. Same quality. Same everything-included pricing.
Custom sizes available. Optional: Loading/Unloading System ($9,000) · Additional Vacuum Pump ($5,500)
Return on Investment
At 50 sheets per day, the math isn't complicated. The Elite doesn't cost you money — it makes you money. The only question is how long you want to wait.
"The Elite Series transformed our production capabilities. The combination of the rotary tool changer and drill bank has cut our cabinet production time by over 50%."
Specifications
The Details
| Elite 48 | Elite 510 | Elite 512 | Elite 710 | |
|---|---|---|---|---|
| Working Area | 49" × 97" | 61" × 121" | 61" × 145" | 85" × 121" |
| Frame Weight | 5,000 lbs | 7,000 lbs | 8,500 lbs | 9,800 lbs |
| Spindle | 16HP HSK | 16HP HSK | 16HP HSK | 16HP HSK |
| Tool Change | 7 sec | 7 sec | 7 sec | 7 sec |
| Tool Magazine | 12 pos | 12 pos | 12 pos | 12 pos |
| Rapid Speed | 2,500 IPM | 2,500 IPM | 2,500 IPM | 2,500 IPM |
| Cutting Speed | 1,600 IPM | 1,600 IPM | 1,600 IPM | 1,600 IPM |
| Repeatability | ±0.001" | ±0.001" | ±0.001" | ±0.001" |
| Vacuum Zones | 4-zone | 6-zone | 7-zone | 8-zone |
| Controller | Syntec 21MA | Syntec 21MA | Syntec 21MA | Syntec 21MA |
| Power | 3-Ph 208-230V | 3-Ph 208-230V | 3-Ph 208-230V | 3-Ph 208-230V |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years |
| Price | $81,000 | $85,000 | $87,000 | $89,000 |
The Bottom Line
We've built machines that cost ten times this.
Now we're building one for you.
We source globally. We finish locally — in 61,000 square feet of Colorado facility where every machine gets our hands on it before it gets yours. We skip the showroom and the sales team and the layers between you and your router. What's left is a better machine at a fair price, backed by people who've been building CNC for shops like yours for over a decade.
This isn't our first machine. It's just the first one we could sell you at this price.
Ready?
Let's talk about your capacity.
Request a Quote Download Specifications (800) 627-0892Looking for solid production at a lower price point? See the Foundation →
